Potentials

One of the main goals of Mechanica is to enable users to rapidly develop and explore empirical or phenomenological models of active and biological matter in the 100nm to multiple cm range. Supporting modeling and simulation in these ranges requires a good deal of flexibility to create and calibrate potential functions to model material rheology and particle interactions.

Mechanica provides a wide range of potentials in the Potential class (MxPotential in C++). Any of the built-in potential functions can be created as objects in a simulation using a static method on the Potential class, which can be bound to pairs and groups of particles to implement models of interactions.

Creating, Plotting and Exploring Potentials

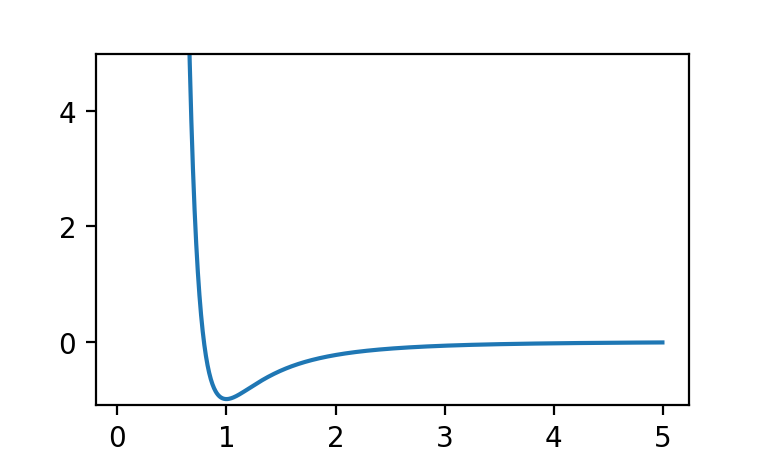

Potential objects are created simply by calling one of the static methods on the Potential class. In Python, Potential objects conveniently have a plot method that displays a graph of the potential energy in a matplotlib plot. For example, while working with the built-in Generalized Lennard-Jones potential,

import mechanica as mx
pot = mx.Potential.glj(10)
pot.plot()

results in

usage

A Potential instance can also be created by adding two existing instances. Such operations can be arbitrarily performed to construct complicated potentials consisting of multiple constituent potentials,

pot_charged = mx.Potential.coulomb(q=1)
pot_fluid = mx.Potential.dpd(alpha=0.3, gamma=1, sigma=1, cutoff=0.6)
pot_charged_fluid = pot_charged + pot_fluid

Note

Changes to constituent potentials during simulation are reflected in potentials that have been constructed from them using summation operations.

Mechanica also supports creating custom potentials with the Potential method custom. A custom Potential requires the domain of the Potential and, at minimum, a function that takes a float as argument and returns the value of the Potential at the argument value. Mechanica constructs an interpolation of a potential function using functions that return the value of the Potential, its first derivative, and its sixth derivative. When a function is not provided for either derivative, the derivative is approximated using finite difference,

pot_custom = mx.Potential.custom(min=0.0, max=2.0,
                                 f=lambda r: (r-1.0) ** 6.0,            # Potential function
                                 fp=lambda r: 6.0 * (r-1.0) ** 5.0,     # First derivative
                                 f6p=lambda r: 720.0)                   # Sixth derivative

Potentials for angle and dihedral bonds can be created by passing Potential.Flags.angle.value and Potential.Flags.dihedral.value, respectively (POTENTIAL_ANGLE and POTENTIAL_DIHEDRAL in C++, respectively), to the keyword argument flags. In both cases, the cosine of the angle of an angle or dihedral bond is passed as argument to the potential function,

pot_angle = mx.Potential.custom(min=-0.999, max=0.999,
                                f=lambda r: cos(2.0 * acos(r)),
                                flags=mx.Potential.Flags.angle.value)

Note

The cosine of angles is used when evaluating angle and dihedral bonds to improve computational performance, but presents challenges to creating custom potentials in that analytic expressions for derivatives of the potential function can be excessively tedious to derive and implement. This issue motivates providing built-in support for approximating derivatives using finite difference. However, providing functions for the first and sixth derivative of a potential function is recommended whenever possible, as is examining the quality of the generated interpolation of a potential function before using it in a simulation using plot.

Built-in Potentials

Presently, the following built-in potential functions are supported, with corresponding constructor method. For details on the parameters of each function, refer to the Mechanica API Reference.
